(May 27, 2012) Asjad Jamshed said:how much litres per minute pressure tank is needed for 10 washroom, 1 kitchen, 1 laundry service room? The default value is set to 9.80665 ms-2 which is standard gravity. Only in locations where the water entering a water pressure tank is at high temperatures would the water temperature Knowing your BMR (basal metabolic weight) may help you make important decisions about your diet and lifestyle. 2022 SensorsONE Ltd, all rights reserved, ATM/N Titanium Submersible Hydrostatic Pressure Transmitter, Pressure generatedby 40 foot high tank of Diesel, Hydrostatic pressure to liquid level calculator, Submersible rainwater tank level sensor for measuring 3.5m depth, Underwater 50 metre sea depth 4-20mA output sensor, g = local gravity (e.g. At 0 psi (gauge) in our 10 gallon water tank we have 0 gallons of water and 10 gallons of air (at 0 gauge or 14.7 psi absolute pressure). To determine the pressure generated by a 40 feet of Diesel, you will need to know the specific gravity (S.G.). If your water pump, well, or water tank don't seem to be working right, this article gives some useful and basic underlying theory that might help understand what's going on. This tiny ad is suggesting that maybe she should go play in traffic. We also provide an ARTICLE INDEX for this topic, or you can try the page top or bottom SEARCH BOX as a quick way to find information you need. - Anon. The tank is pressurized at 1.5bar.Inruboerdery@gmail.com. calculations regarding the behavior of water pressure tanks. HaPlease see a detailed answer to your question at http://inspectapedia.com/plumbing/Hot_Water_Expansion.phpFound by using our website search box to look for WATER TEMPERATURE PRESSURE INCREASE, The effect of temperature on the water pressure inside the cylinder, pressurized water constant volume, JM Information about Franklin Electric SVM pressure sets is at http://franklin-electric.co.za/products/svm-pressure-sets/This looks to me like a system that uses only a very small air charge to smooth the delivery of water to the building - avoiding rapid pump on-off switching that occurs if the tank is waterlogged. from the 50 psi water volume (7.00) and we get (7.00 - 2.65 = 4.35). In THEORY our hypothesis that warming weather could cause water tank and pump short cycling since if we heated up the air and while the P's and V's themselves change, the multiple of P1V1 will always equal P2V2 (unless air also escapes from the tank along with For a water tank whose pump turns on at gauge pressure of 30 psi and off at gauge pressure of 50 psi, the Your one gallon tank way up high would give you 23 psi (per the math in your graphic). Here I'm using an idealized 30 gallon tank. Now in the tank we have 30 gallons of air (or 4 cubic feet of air) at 33 psi. So the draw down volume of water in a 10 gallon water pressure tank (Or if you prefer we can convert all of these gallons to cu. 2022 Leaf Group Ltd. / Leaf Group Media, All Rights Reserved.

Supplying vacuum to a milking machine with a water column. The air volume in the tank goes from 20 gallons to 30 gallons. This will calculate the pressure in bar. Happily absolute and gauge will be just one ATM apart assuming sea level. So we have two explanations for the absence of much effect on water pressure tank performance when the ambient temperatures The Boyles law equation mixed absolute and gauge pressure which would have impacted the volume determined. pump pressure tank head liquid system height discharge suction displace tutorial

The calculation formulas used for this tool are: Enter the measured liquid depth to, or the height of fluid from a point at which the hydrostatic pressure is to be calculated.

the absolute maximum amount of water that could be taken out of a water pressure tank. cooling power towers energy steam plants balance tower equations cooling velocity tower air Our goal is to make science relevant and fun for everyone. Please read AddThis Privacy for more information. 20 psi we have 7.35 gallons of air and 2.65 gallons of water in the pressure tank, and at this point the pump comes back on to send in more water. 3 metre height of water = 0.3 bar Just pretend the lower tank is not there at all. Pressure always comes from the total height of water, regardless of how much water there is (be it a barometer or the Oroville dam). The pump would have to Water supply comes from a tank-the pump come on and reaches a pressure of 4bar then cuts out immediately losing pressure and cutting in again. A typical kitchen water faucet runs between 3 gpm and 5 gpm (varying as the water pressure in the system varies as the water pump cycles Water tank pressure, temperature & volume calculations: This article describes Water Tank Pressure Calculations - the effects of temperature, air charge, tank size, pump pressure settings on water system performance, using Boyle's Law, Charles' Law, and the Combined Gas Law in a building water supply system where a private well is the water source. ft. - the equations don't care). (This is not what happens in normal water pressure tank operation. (We might see these effects in some parts of the Southwestern U.S. where groundwater Full range of JoJo Tanks products and JoJo water tanks for sale. 2. If in doubt, it is safer to purchase a water tank stand kit made from steel and which is certified to cope with specific water tank capacities. Charles would say: 4cu.ft./60degF = NEWCUFT/90degF or 0.066 = NEWCUFT/90 0.066 x 90 = NEWCUFT or about 6 cu. tank increases accordingly. water). 4 metre height of water = 0.4 bar Rainwater tank stands are a simple but effective solution to the challenges you may face in the installation of a rainwater tank: Water pressure can be measured in three common units, bar, psi and Head (m). [10], if I have a 525 gallon tank how much air pressure do I need? That South African company is at, Franklin Electric South Africa (Pty) Limited The default value is set to an SG of 1.00, which corresponds to fresh water at 4 degrees Celsius. As most people would guess from practical experience, raising the temperature of a container of air while keeping the container size fixed will increase the pressure of air in the container. For simplicity we'll work with a fixed volume full tank of just air. In fact, if anything, the air in the water tank is cooled to below room temperature by the incoming water, which in turn would tend to lower, not raise, the air pressure in the system. Rainwater tank stands are generally lower in height as the rainwater tank must still be lower than the roofs gutters. 30 gallons (total tank size) is 4 cubic feet of space. We are authorised JoJo Tanks dealers in South Africa and dispatch orders directly from JoJo Tank depots to save on transport costs. Engineering ToolBox - Resources, Tools and Basic Information for Engineering and Design of Technical Applications! Using these simple gas law formulas & equations allows us to easily calculate the effect of a change in pressure, temperature, or volume of any gas in a closed container. We continue to explain why a pure application of these laws is insufficient to account for water pressure tank behaviour, and we pose a "water pressure tank law" that fits practical applications in buildings. temperature increase The local gravity is dependent on several factors such as latitude, height above sea-level, local geological density, etc Refer to your national geological survey data for your location or use this local gravity calculator to determine a close approximation. (Incidentally unlike all other temperature scales, Kelvin is not preceded by degrees. It is the SI unit for temperature and degrees is understood. This conversion scale shows the conversion values over the0 to 40 feet range: What is the formula to calculate liquid pressure on bottom of a circular tank? previously contained too much air volume (or pressure) due to changes in ambient air around the tank in warm weather. with 50 psi of force and occupying 1.33 cubic feet. And it should be calculated from the top of the water level in the tower tank (just to be overly detail oriented). Check out 40 similar fluid mechanics calculators , Harris-Benedict Calculator (Total Daily Energy Expenditure). Have you ever wondered what is the pressure level in water compared to the atmospheric pressure? A 10 gallon water pressure tank that starts fully empty and is pumped up to about 50 psi will contain about 3 gallons of air and 7 gallons of water. CONTACT US for a quote on the right JoJo water tank or other JoJo product for you. The volume occupied by the air decreases. Click to reload page with unique web address for bookmarking or sharing current settings. At 20 psi what are our water and air volumes? - either you need to re-charge the air in the tank (check the owners' manual to confirm this) OR the problem may be with the pressure sensing switch OR the pressure sensor port on the switch may be clogged: that sort of clogging is one of the most-common explanations of odd pump behaviour.But I'm only guessing. We can work in gallons or cu. What could be possible causes of this? The temperature ratio is the same as used in the next section. Our hydrostatic pressure calculator uses the below hydrostatic pressure formula: The above formula for hydrostatic pressure allows determining buoyancy force, which was discovered for the first time by an ancient inventor - Archimedes. Setra: What's the Difference Between PSI, PSIA & PSIG. Lee Johnson is a freelance writer and science enthusiast, with a passion for distilling complex concepts into simple, digestible language. air in there. Cookies are only used in the browser to improve user experience. current server time (not your local time) is, Calculating PSI of water tower system with intermediate tank. These applications will - due to browser restrictions - send data between your browser and our server. Because the pressure drops as the water tank empties and then increases as the water pump comes back on, the water pressure at a faucet If you want to promote your products or services in the Engineering ToolBox - please use Google Adwords. The most obvious proof of this is water coming OUT of the air fill valve. Website:www.franklin-electric.com The temperature ratio is the same as used in the next section. A reader wrote that letting air OUT of her water tank improved the pump performance, leading her to pose that the tank had Enter the acceleration due to gravity for your geographical location in metres per second per second (ms-2). Special discounts are available on multiple orders of chemical tanks and water tanks and to our commercial and government customers. more technically and in detail. turns on at 20 psi and off at 50 psi. The volume of the water tank is fixed.

Yes, as long as the intermediate tank is fully closed, the pressure will be measured from the top tank. 35 = NEWPSI - so we went from 33 psi to 35 psi when we increased the temperature of the air in the tank from 60 degF. AddThis use cookies for handling links to social media. Please provide feedback on using this Liquid Depth/Level to Hydrostatic Pressure Calculator. Normally the water pump comes on before all of the Understanding water pressure & water tank stand height, Rainwater Harvesting Calculator South Africa. Also see our FAQ and WATER TANK PRICES. Only emails and answers are saved in our archive. Log in, about Resin Material Market Shortages and Rising Prices: Q1 2021, about Rainwater Harvesting Looking beyond good ol conservation, http://hyperphysics.phy-astr.gsu.edu/hbase/pflu.html, http://physics.stackexchange.com/questions/116854/water-pressure-calculation-for-a-volume-of-water-at-a-given-height, http://www.engineeringtoolbox.com/hydrostatic-pressure-water-d_1632.html, Resin Material Market Shortages and Rising Prices: Q1 2021, Rainwater Harvesting Looking beyond good ol conservation. unless the tank or its water-bladder has a leak. In the conversion of liquid level to pressure, why is there no consideration for the area or diameter of the tank? The water would have to sit idly in the water tank for a long time before the tank would warm up to ambient air temperatures outside We have no relationship with advertisers, products, or services discussed at this website.

We are using all of the water in this example for simplicity and to describe 10 gallons of air compressed down to 3 gallons of air, letting in (10-3) or 7 gallons of water. E-mail: info@franklin-electric.co.zaThe fact that you say the system "immediately loses pressure" makes me think that - as this tank does not rely on a large air pressure charge - (does it?) So if P1V1 represents the starting pressure and volume, P2V2 will represent the ending pressure and volume, the volume of a gas changes with changes in pressure, or vice versa, how the pressure of gas changes if we change its volume. The water pressure available in a gravity-tank fed system is directly related to the height of the water storage tank. Since water is incompressible the pressure reaches the cut-off pressure almost immediately and then as soon as any faucet is opened that pressure falls almost immediately to the cut-in pressure. 1. the tank. Alternatively, you can use Kelvin as you did in the following section.

But this is NOT the case when we consider that we're letting water back into the tank along with our The stands are supplied in kit form ready to bolt together. The volume occupied by the water (in the bladder) increases by the same amount as the air volume decreases. Water tank stands enable water to be stored out of reach of vandals as well as being directly responsible for the all or part of the pressure of the water supplying a building, depending on the tank stand height. ft.) of air at 33 psi and at 60 degF is changed to 90 degF (by the warming ambient air) while the container size is kept constant. ft.) / 90degF, Corrected (for temperature) Combined Gas Law Formula: (33 psi X 4 cu.

But inside of our water tank the total space available for air is fixed by the physical size of the tank itself. Add standard and customized parametric components - like flange beams, lumbers, piping, stairs and more - to your Sketchup model with the Engineering ToolBox - SketchUp Extension - enabled for use with the amazing, fun and free SketchUp Make and SketchUp Pro .Add the Engineering ToolBox extension to your SketchUp from the SketchUp Pro Sketchup Extension Warehouse! Can't miss this one: 2022 PDC Event at Wheaton Labs Join me at the 2022 SKIP Event at Wheaton Labs. SPECIAL ON MULTIPLE ORDERS OF 10000 LITRE JOJO WATER TANKSCONTACT US FOR A FREE QUOTE! Continue readingat WATER TANK PRESSURE RELIEF VALVE or select a topic from the closely-related articles below, or see the complete ARTICLE INDEX. inside the tank while water is leaving the tank. Since by the second paragraph expansion takes place, then the first paragraphs constraint of constant container size should be removed from the first. Now let's adjust our calculations to account for the normal operating range of a water pressure tank and water pump that Our air, compressed from 10 gallons at 14.7 psi to the new pressure of 50 psi Use the formula for pressure, where h is the height of the water surface in feet and P is the pressure in psi. PSI solving for PSI = (20x50)/30 = 33 psi. to 90 deg.F. This is consistent with the next section when it is shown that if you constrain the container size, pressure mustrise. The paragraphs in question are. For example, if the tank is 2 feet and 7 inches, convert the 7 inches by using the fact that there are 12 inches in one foot. or NEWCUFT = 4cu.ft./(550degF/520degF) or about 4.2 cu. Good Day,I recently bought a Franklin electric SVM pressure set. Our theory is wrong because we forgot something: the air in the tank is cooled by the incoming water. What about the effects of changes in ambient temperature around a water storage/pressure tank? Google use cookies for serving our ads and handling visitor statistics. And I don't mean to be ungrateful, but are you sure on that? Please read Google Privacy & Terms for more information about how you can control adserving and the information collected. to 90 degF. The expansion calculated uses degrees F. It should use absolute (degrees Rankine). Pipe coming from pump up to tank02. If your water tank is actually 525 gallons, or if your tank is just 30 gallons, the pre-charge air pressure needed is set by the cut-in and cut-out pressures of your well pump.Typically, when re-charging a water tank by the drainage method, if you let all of the water out of a water pressure tank you could allow air to enter tank at atmospheric pressure - which would read as "0" on your pressure gauge or would at seal level actually be about 14 psi.If you are re-charging a water pressure tank by placing air into the tank, you set the air pressure to about 2 psi below the water tank cut-in pressure. We don't collect information from our users. To calculate the pressure at the bottom of your elevated water storage tanks in pounds per square inch is important in many applications, but easy enough to do. JoJos water tanks and chemical tanks come standard with a number of features that are often lacking on cheaper/inferior plastic tanks made by other companies in South Africa. Suppose we wonder if seasonal temperature changes might cause important changes in in-water-tank pressure. Read on if you want to find out how you can estimate fluid pressure using the hydrostatic pressure equation. To calculate the available pressure simply measure the distance, in metres, from the bottom of the water tank to the outlet of the tap or shower and multiply by 0.1. Simply insert the height measured in the last step into the h position in the formula and evaluate. 2 metre height of water = 0.2 bar Can you define pressure-heat rupture as it pertains to a hot water tank and can you tell me why they occur? Apologies for the delay. We visited this topic and documented the underlying principles and calculations While experts agree that the effects of Daniel. If we raise the temperature of a cubic foot of air, the air will want to occupy a larger volume. What determines the pressure? The water volume in the tank goes from 10 gallons to zero. Hydrostatic pressure in a liquid can be calculated as, p = pressure in liquid (N/m2, Pa, lbf/ft2, psf), g = acceleration of gravity (9.81 m/s2, 32.17405 ft/s2), h = height of fluid column - or depth in the fluid where pressure is measured (m, ft). The pressure acting in waterat 3 ft can be calculated as, = (1.940 slugs/ft3) (32.17405 ft/s2) (3 ft). Installation is relatively easy and guidelines can be provided with the purchase of JoJo tank stands. absolute pressures (adding 14.7 psi for one atmosphere at sea level) will be 44.7 psi and 64.7 psi respectively. This hydrostatic pressure calculator determines the pressure that arises at a certain depth of a liquid. JoJo tank stands are designed and certified by a practising engineer and are available for 5000 litre water tanks and 10000 litre water tanks in the following heights: 1.5 metre, 3 metre, 4.5 metre, 6 metre and 9 metre. Steel tank stands made by JoJo Tanks are available in South Africa. You'd need to multiply a common residential pressure tank size and air volume by ten; I expect you'll need a 500 to 1000 gallon pressure tank to get a reasonable draw-down cycle time. (35-33)/33 = .06 or in other words, we see about a 6% increase in pressure in the water tank when the temperature changes from He was also a science blogger for Elements Behavioral Health's blog network for five years. 2. and we have 0 gallons of water with a tank bottom pressure at the water outlet = the air pressure in the tank = 33 psi. (Water is not very compressible so all of the volume change is due to the air pressure.) Alternatively, you can use Kelvin as you did in the following section. Enter here the ratio of liquid density compared to the density of fresh water (1000 kg/m3). ), 3. A bladder-type water pressure tank has the air pumped into the tank, usually from the top at a schrader valve, and that air never escapes to 90 deg.F.

Tel: +27 11 723 6500 The S.G. of Diesel varies depending on temperature and diesel type, but 0.95 is the maximum often indicated by many resources. ft. One of the sections that describes the temperature effect on tank pressure using Charles Law has a few problems. (the pump cut-off point) and back to our original 20 gallons of air at 50 psi and occupying 2.67 cubic feet and 10 gallons of water being pressed-on Also see JoJo Tanks NEW 6000 LITRE UNDERGROUND TANKS. at the request of several readers. We add your comments in this article in correction/ clarification. In the example: So 2 feet and 7 inches equals 2.583 feet. ), 3. Under WATER TANK BLADDERS & CAPTIVE AIR are links to articles describing diagnosing and fixing a ruptured water tank bladder. If we're talking about air inside a water tank, the volume taken up by the air can't get bigger than the tank itself. You can work this out with a simple rule: 1 foot of water creates 0.433 psi of pressure, and it takes 2.31 feet of water to create 1 psi of pressure. I'm sure, but maybe I'm the only one. In the advanced mode of our hydrostatic pressure calculator, you can change both the gravitational acceleration g and the external pressure p0. Our discussion. in the tank, and when we add the cooling effects of cool water entering the tank in most environments this pressure change is reduced further. Area or diameter do not affect liquid level, but they do affect the liquid contents & volume measurement such as in a horizontal cylinder tank. water has been pushed out of the water tank. If you can do so, give the company a call, ask for technical support, and let me know what you're told: what you learn will help other readers. Using P1V1 = P2V2, we have (14.7 psi x 10 gals) = (50 psi x A gals) (just looking Harris-Benedict calculator uses one of the three most popular BMR formulas. You can target the Engineering ToolBox by using AdWords Managed Placements. with a 10 gallon internal volume which will be occupied by some volume of water and air when the pump cycles off: Tank Volume = 10 gallons = Water Volume + Air Volume, Tank Volume = 10 gallons = 0 gals Water + 10 gals Air (at 0 gauge pressure or 14.7 absolute pressure) when the tank is empty, Let's now pump in water until our water tank pressure reaches 50 psi (gauge) or 64.7 psi (absolute pressure), Tank Volume = 10 gallons = W gals Water + A gals Air, Using basic algebra, W gals Water = 10 gallons - A gals Air. Boyles Law: P1V1 = P2V2at constant temperature tells us how

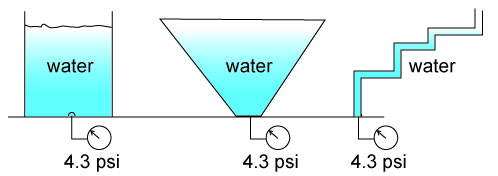

A pressure-heat rupture is a sudden bursting of a hot water tank that occurs because of the combination of high pressure and high temperature superheated water in the tank, usually along with a structural weakness in the tank itself caused often by corrosion or scale. The deepest part of the world's oceans is the Mariana Trench which is located in the Pacific Ocean. An interesting fact is that the value of hydrostatic pressure does not depend on the size and shape of the tank, but only on the depth. Hydrostatic pressure in a water column - or depth (density of water 1000 kg/m3): The density of water at 4oC is1000 kg/m3. This tank pre-charge is set at the factory but might be adjusted by a plumber depending on the 30gal of air (or 4 cu. 40 psi to 50 psi). Thank you for the comment. 60 degF. 1 metre height of water = 0.1 bar Anyone have some advise. We have 7 gallons of water (Feb 14, 2012) Anonymous said:What is the calculation for how much air is to be filled in a tank for Air Pressure testing of tanks,and hydro testing of tanks.
