I'm going to try 10k because I have them handy, but there's probably a balancing act that's going to be necessary between getting too hot and pulling enough current through the Intelliflow to trick it into staying on. 2. 0004800 If Your Current Installation Looks Like: These mounting kits are specifically used to install the Watts Model A2C-M1 IntelliFlow automatic washing machine shutoff valve to existing drain valves. During the calibration sequence, the red LED lamp will remain lit for approximately 3-5 seconds. So that's no good. There is one caveat, however. Installation and Operation Guide PD4600 Series Converter Replacement, Geyser-R Heat pump water heater Installation manual, OWNER S MANUAL FORCE 10 MARINE COMPANY 23080 HAMILTON ROAD RICHMOND, BC CANADA V6V 1C9 TEL: (604) 522-0233 FAX: (604) 522-9608, RC930 Manual 6/10/99 1:23 PM Page 1. As the DC supply voltage falls, the brownout detector will hold the controller in RESET until the power is too low to matter.

Electric Mini Tank Water Heaters WM-1.0 WM-2.5 WM-4.0 WM-6.0. This lamp is illuminated whenever the IntelliFlow senses current flow (the washing machine is turned on). Before completing installation, IMPORTANT INSTRUCTIONS & OPERATING MANUAL Houston 50 Inch Electric Wall Mounted Fireplace Black / White Model Number:MFE5050BK Model Number:MFE5050WH Read these instructions carefully before attempting. Well, stress testing of the V3 design showed some flaws. WARNING Before using this product read and understand instructions. In many locations, an electrical differential between an electrical ground and a water pipe ground can exist. Unit cycles ON/OFF: Installation in a horizontal position can cause abnormal overheating of the unit which causes this cycling condition. 2. Calibration using IntelliTimer Accessory: Calibration must be performed with the washing machine in the off position.

The must be calibrated to adjust the current flow threshold required to activate the shutoff valves. Electric Tankless Water Heaters. ~5 watts of dissipation, however, makes for a great deal of heat (and, of course, wasted energy). resetting OWNER S MANUAL Read these instructions before use.

Caution prior to servicing strainers, first remove power to, by unplugging, then shut off both hot and cold, Some washing machine models include circuitry that causes a, slight current draw at all times.

The base of the sensor is placed on the floor close to the washing machine. Both lower voltage (brownouts) and high voltage (surges) can occur. 7, 8 Retrofit Kit Options Retrofit Installation Kit KA2-BD Order No If Your Current Installation Looks Like: These mounting kits are specifically used to install the Watts Model A2C-M1 automatic washing machine shutoff valve to existing drain valves. The 3.0.1 boards came back and still have just SMD footprints, but I tacked a 3.9k 5W resistor across them and sort of hovering in the air over the board.

Internal operating temperatures may cause unit to feel warm to the touch. GREEN LED: ON 1. Some States do not allow limitations on how long an implied warranty lasts, and some States do not allow the exclusion or limitation of incidental or consequential damages. 9. The upcoming v3 board makes another change, and will likely be the final version. GREEN LED: ON 2. BLINKING: Unit Timed Out FAINT BLINK: (3-5 seconds) This lamp is illuminated when the leak sensor is installed and water has been detected at the sensor. 4. This design has the SSR and button power system so that there is no standby load. That's quite a lot, given that the theoretical DC load should be 800 A or less at 5 volts (<5 mW), but nobody ever said that wall warts were terribly efficient at low draw. shutoff intelliflow a2c The 9.1k resistors just get too hot and damage the board. 3. Loosen the two (2) adapter nuts and remove both adapters from valve body. You are about to report the project "Watts Intelliflow timer", please tell us the reason. IMPORTANT: Do not plug valve into supply circuit until completion of assembly. Plug the leak sensor plug into the leak sensor receptacle on the front panel. Contents FCC Information 3 FCC Declaration of Conformity 5 Preparation 5 Installing Batteries Mini Tank Electric Mini Tank Water Heaters WM-1.0 WM-2.5 WM-4.0 WM-6.0 Installation and Operating Instruction Manual Table of Contents Important Safety Instructions 3 General Information 3/6 Technical, Electric Mini Tank Water Heaters EMT1 - EMT2.5 - EMT4 - EMT6 Installation and Operating Instruction Manual Table of Contents Important Safety Instructions 2 Technical Data 3-4 General Information 5 Technical, MASTER Water Conditioning Corp. IS-A2C-M1-A2C-WB-M1.qxd 6/22/09 2:30 PM Page 2 Installing the A2C-M1 IntelliFlow WARNING: Install Upright Power MUST be off during installation or servicing of the valve! Water Conditioning Corp. MBA-10/13 FILTERS with the 253/742 Logix Control Valve. The alternative, driving the gate positive means quadrant 1 and 4, which is a problem because making a triac sensitive in quadrant 4 is hard (and can result in increased dV/dT sensitivity, which is bad). Service strainers on washing machine hoses. That's enough to keep the valve triggered. 20122022, manualsdir.comAll rights reserved. This also begins a timing sequence of two hours, which, upon its completion de-energizes the, shutting off the flow of water to the washing machine. OWNER S MANUAL Read these instructions before use. Lightning strikes can also cause high voltage spikes to occur.

Not for use in explosive atmospheres. 1. With the load off, theAC side sees about 100 mW. If retrofitting to an existing installation, disconnect the washing machine hoses from the existing shutoff valve(s). This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. 7. The Intelliflow uses / passes only 120 volt power. IMPORTANT SAFETY INSTRUCTIONS, 926 Manual V2.0(1J9643) 6/10/99 1:39 PM Page 1 RC926 Wireless Phone Jack System (Digital Satellite System # D916) The Wireless Phone Jack System works with most telephone line devices, such as: Answering, Mini Power Bank and Charger Owner s Manual Please read before using this equipment. RED LED: BLINKING 2. Watts actually sells something similar to this project. Shut off electrical power supply. AeroVironment, EV Solutions, and the AeroVironment logo are trademarks, Owner s Manual Your Solar Hot Water System Thank you for your investment in the FAFCO Solar Hot Water System. Part Number: 71-0045RK Revision 0 Released: 10/3/05, DTM04 TANK MONITOR DTM08 TANK MONITOR Dtm12 TANK MONITOR. USB to Micro USB Cable, Automatic Phone-Out Home Monitoring Systems Power Outage and Freeze Alarm Model Number: THP202 Power Outage, Freeze and Flood Alarm Product Description Model Number: THP201 These monitoring systems are, Dehumidifier Users manual For Models: DH45S DH65S 950-0062-revD Jan. 9 2007 FORWARD The appearance of the units that you purchase might be slightly different from the ones described in the Manual, but, USER GUIDE TURBOCORD TM PORTABLE CHARGER 120V/240V: DUAL VOLTAGE AeroVironment EV Solutions 2013 AeroVironment, Inc. All rights reserved. Name of Equipment Silver King Model SKMCD1P/C1. This winds up being just a bit less than when the load is on the DC side (because of inefficiencies in the DC supply), but should still be visible enough to the Intelliflow. YELLOW LED: OFF 2. 8. Finished Wall Mounting Tabs (4) Water supply connections Trim Plate Mounting Slots (4) Figure 5 (side view) Trim Plate Figure 6 (front view) 16" on center Typical Figure 7 (top view) Drain connection Drain Wall Studding Drain Knockout *Ground Fault Interrupter A GFI circuit is not required for proper operation of the, but is strongly recommended as a safety device. 12. Ultrasonic Jewelry/DVD Cleaner make jewelry, dvds and more sparkle like new Table of contents Cautions & Warnings 2-4 Location of Controls.. CABLE MODEM QUICK START This Quick Start describes how to connect your Zoom cable modem to a cable modem service. systems water leak fresh detection prevention Caution: Excessive heat from soldering can damage plastic components. I am going to try to remove some of the resistors to see if the unit remains reliable without getting so hot. These models when connected to the can cause the water supply to be energized continuously (Yellow LED: ON). 10/30/2020 at 23:09, Standard Tesselated Geometry - Install Upright O-Ring 2 1 2" Figure 3 Figure 3A Watts A2C-M1 Adapter Nut Adapter Water Supply Piping Power supply ground fault protected Water supply Washer Figure 4 CAUTION: Use of the Watts Automatic Washing Machine Valve outlet for appliances other than a washing machine is not recommended and voids the warranty. February 2011 Version, Use & Care Manual. GREEN LED: ON 1. But the issue with that is that in order to operate the triac in quadrants 2 and 3 you want the positive supply rail for the LVDC side to be anchored on one of the AC legs and for "ground" to be 5 volts lower than that. Calibration: (Startup) Calibration must be performed with the washing machine in the off position. During the calibration sequence, the red LED lamp will remain lit for approximately 3-5 seconds. IMPORTANT: Do not plug valve into supply circuit until completion of assembly. Turn off washing machine to reset timing circuit. In accordance with National Electric Code, NFPA 70, Section Branch Circuits Required, at least one 20-ampere branch circuit shall be provided to supply the laundry receptacle outlets(s) required by Section (F). Upon detection of water at the sensor the immediately shuts off the water supply to the washing machine hoses preventing catastrophic water damage. 2. Remove drain plug knock out. The resistor gets pretty hot to the touch, but since it has air space around it, it appears to not be damaging anything else (or itself). No water flow from one hose - (either Hot or Cold): 1. Unplug from electrical outlet, correct problem, then re-insert plug into outlet to reset valve. Wireless Modem Jack, USER INSTRUCTIONS FOR GET PORTABLE 12k BTU AIR CONDITIONER MODEL No. Turn off water supply until you ve completed installing wall materials. Going from 9.1 to 10 k drops the power on the AC side from 4.75 watts to 4.33 watts. No. American Megatrends, Inc. 5555 Oakbrook Parkway, Building 200, Standard 18 Line to Refrigerator Ice/Water Dispenser Pump Module Bottled Water How The System Works The FLOJET Bottled Water Dispensing System was designed to pump water from a commercially available 5-gallon. Check electrical outlet for power (reset ground fault).

Strainer 3. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from State to State. Installation and Operation Manual MCA Time Clock Series Residential Softeners February 2011 Version Table of Contents Page No. FUTURE CALL PICTURE CARE PHONE MODEL: FC-1007 USER MANUAL. We found washing valve shutoff sensor leak intelliflow a2c Check electrical outlet for power (reset ground fault). We simulate that by turning the load on for 120 seconds every 223 seconds (prime so that it hopefully won't sync with any process going on in the Intelliflow). These models when connected, can cause the water supply to be energized, continuously (Yellow LED: ON).

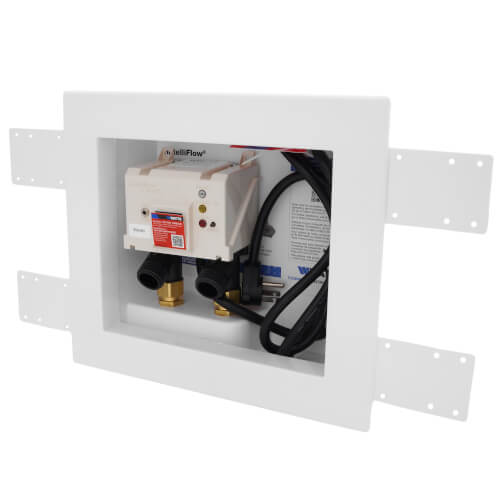

The load is 3 9.1k resistors in parallel, for a total of around 4.75 watts, plus another quarter watt or so for the LV side. Install the four mounting tabs provided in slots on the sides of the wall box enclosure (Fig. 2. No water flow from either hot or cold water supply hose: RED LED: OFF / FAINT BLINK (Blink Every 3 Seconds), This indicates that the valve did not open. The green LED lamp should be on and stay on continuously. IS-A2C-M1-A2C-WB-M1.qxd 6/22/09 2:30 PM Page 3 Installing the IntelliFlow Wall Box Unit (A2C-WB-M1) WARNING: Trim Plate Power MUST be off during installation or servicing of the valve! To calibrate the see Calibration: (Startup) on page Turn on both hot and cold water supply lines, and check for leaks. Sign up. But there are two cases where it is. GPACU12HR, Installation and Operating Instruction Manual, Mini Tank water heater Electric undersink Water heaters GL 2.5 - GL 4 - GL 6+, Model 800 Residential Steam Humidifier Owner s Manual. 2. Already have an account? Tighten adapter nuts. When calibration is complete the red LED lamp will blink four (4) times and shut off. 2.

Recalibration: Calibration must be performed with the washing machine in the off position. All about the TA B L E O F C O N T E N T S. USA and Canada 1-888-845-7330, MBA-MM-1040/10/13/1665 MULTI MEDIA FILTERS, Instructions & Safety Information Models A220-20D and A220-20L Version 2, For Models #6-5001, #6-7501, #10-7501 & #10-12K1, laundry USER S MANUAL Standard Top Load Machines HE Front Load BETTER FOR YOUR LAUNDRY, BETTER FOR YOUR FAMILY BETTER FOR THE ENVIRONMENT, INSTALLATION INSTRUCTIONS. OWNER S MANUAL Read these instructions before use. IS-A2C-M1/A2C-WB-M1 Note: This unit is not compatible with 240VAC powered washing machines or combination washer/dryers that are 240VAC powered. A real washing machine varies its load pretty frequently depending on what it's doing.

This isn't always ideal, so as an alternative, this device will supply a dummy load for a fixed period of time. Plug washing machine into the s electrical outlet. This lamp is illuminated whenever the senses current flow (the washing machine is turned on). Internal operating temperatures may cause unit to feel warm to the touch. SAVE THIS MANUAL FOR FUTURE, Important Safeguards READ ALL INSTRUCTIONS BEFORE USE. All electronic equipment is designed to operate properly within a voltage range. Voltage rating: 115V~60Hz Power rating : 1400W, ATS Overhead Table Shelf System INSTRUCTION MANUAL. 10.

What is Surge Protection? Caution prior to servicing strainers, first remove power to IntelliFlow, unplugging, then shut off both hot and cold water supply to IntelliFlow, Some washing machine models include circuitry that causes a slight cur-, rent draw at all times. Temperature: 180 F (82 C) Max. calibration, see page 4 for calibration instructions. Perhaps the solution is to cycle the load on and off in some pattern to keep the Intelliflow activated. 4, 5 Accessories: Watts A2-IntelliTimer The Watts A2-IntelliTimer is an optional accessory used in conjunction with the Watts Automatic Washing Machine Shutoff Valve. IMPORTANT: Do not plug valve into electrical supply circuit until you have completed installing the unit and reconnecting the water supply lines. Calibration allows the to learn the off or standby current draw of the washing machine to prevent this condition. Unfortunately, their version only turns the water on for 2 hours at a time. STC 3S012-020-A Series Solenoid Valves 3S012-020-A Series Solenoid Valve Specifications Valve Model 3S012-1/8-A 3S012-1/4-A 3S020-1/8-A 3S020-1/4-A Port Size (NPT) 1/8 1/4 1/8 1/4 Valve Type Action 3 Way, Portable Air Conditioner Owner's Manual Model:3 in 1 12,000 Btu/h Series 3 Please read this owner s manual carefully before operation and retain it for future reference. You should consult applicable state laws to determine your rights. 3. / U.S.A. 04072 877-854-8006 * FAX (207) 283-8080 FOR SERVICE ASSISTANCE U.S. AND CANADA CALL: 1-877-854-8006 24 HOURS/DAY 7 DAYS/WEEK TABLE OF CONTENTS, sound proof AIr CoMprEssor CAbInEt owner's MAnuAl spc03 WWW.CALIFORNIAAIRTOOLS.COM Customer Support 1-866-409-4581 TAbLe OF CONTeNTS INTROduCTION IntroductIon 2 Important Safety InStructIonS 5 components, Bottom Loading Water Dispenser Model # 601000 TO REDUCE THE RISK OF INJURY AND PROPERTY DAMAGE, USER MUST READ THIS MANUAL BEFORE ASSEMBLING, INSTALLING & OPERATING DISPENSER. Once you ve finished the wall, install trim plate, connect washing machine water supply hoses to the valve and to the washing machine. IMPORTANT: Do not plug valve into supply circuit until completion of assembly. No. 6. IMPORTANT SAFETY INSTRUCTIONS WARNING READ AND SAVE THESE OPERATING AND SAFETY INSTRUCTIONS BEFORE USING THIS HEATER. The does not cause or change the electrical differential that exists. Final Installation Will Look Like: If Your Current Installation Looks Like: Final Installation Will Look Like: KA2-BD KA2-BD left or right drain center drain Retrofit Kit KA2-R Order No If Your Current Installation Looks Like: This kit is used to replace the following Watts Models: A2-WB, A2C-WB, A2C-WB-M with the new Model A2C-M1. Plug the washing machine into the s electrical outlet. Seaward Products OWNER S MANUAL WATER HEATERS.
